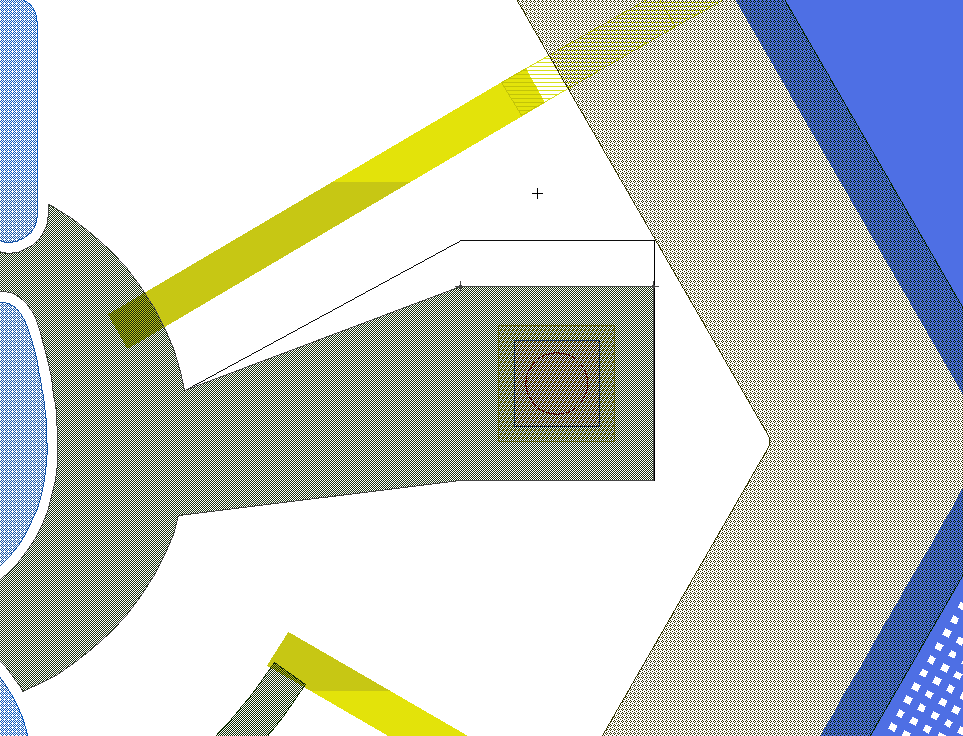

Editing
comprehensive of editing the design with a wide range of features for any application
Boolean Operations, Barcodes, Fracture, Design Rule Checker, SchematicDriven layout, background images are available next to the basic editing feature.

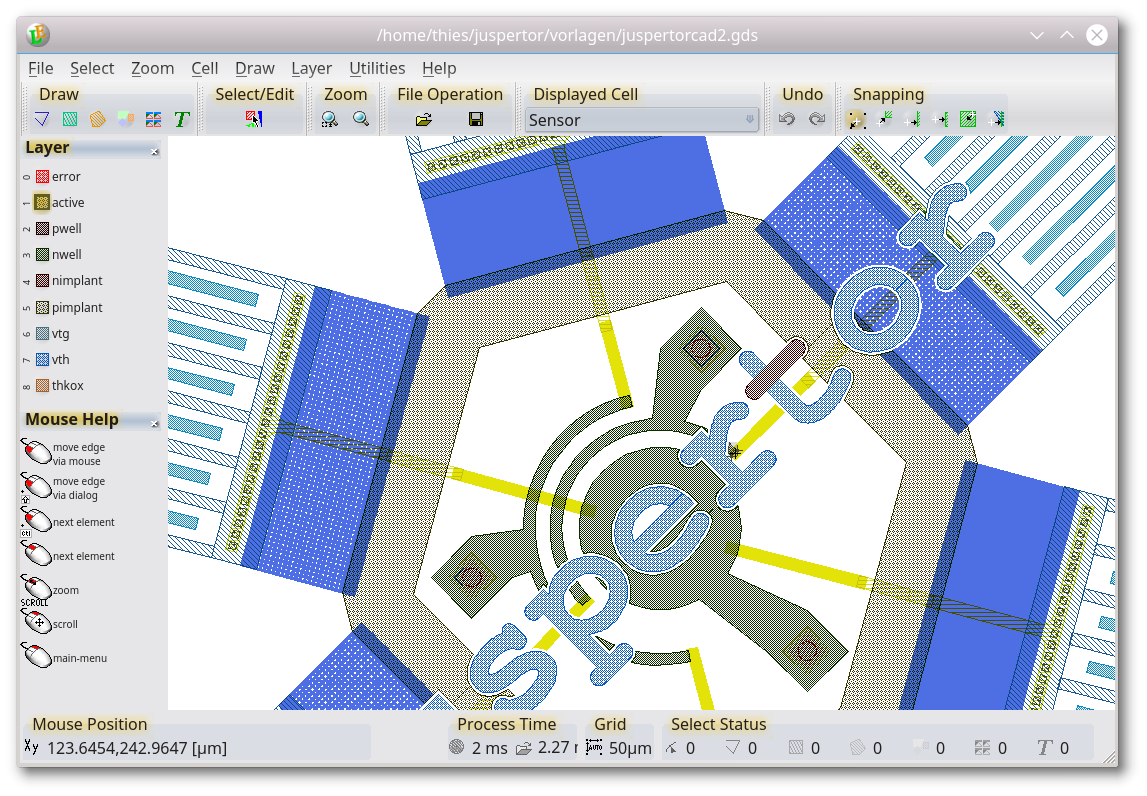

The LayoutEditor
is the most popular software to edit designs for MEMS and IC fabrication. It is also often used for Multi-Chip-Modules (MCM), Chip-on-Board (COB), Low temperature co-fired ceramics (LTCC), Monolithic Microwave Integrated Circuits (MMIC), printed circuit boards (PCB), thick film technology, thin film technology or any other technology using photomasks. The LayoutEditor can freely be used to access our services like the supplier with photomasks.
Give it a try and be prepared to be impressed!

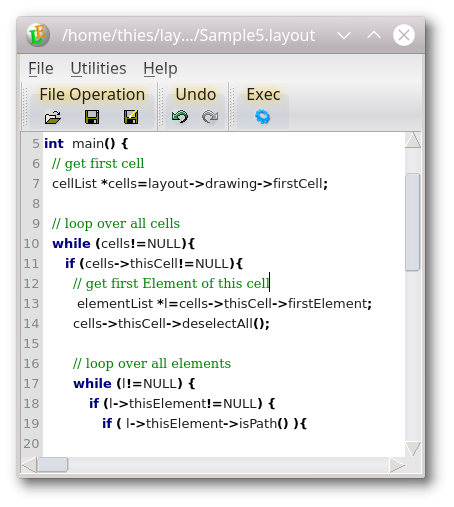

AI-support & scripting
A built-in AI will help you to use any features and creates scripts in C++ and Python for you.
All features can also be called from the built-in scripting engine in C++ style and Python. An AI agent will help you create scripts and explain any feature to you.

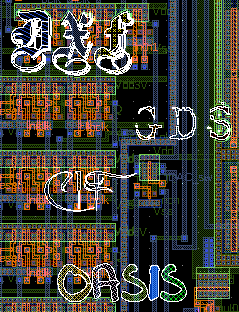

File Formats
supported in large quantities GDSII, OASIS, DXF, OpenAccess ...
The LayoutEditor supports many different file formats including GDSII, DXF, CIF, Source, OASIS, OpenAccess, Gerber, LEF, DEF, SVG, CSV, ODB++ and many more

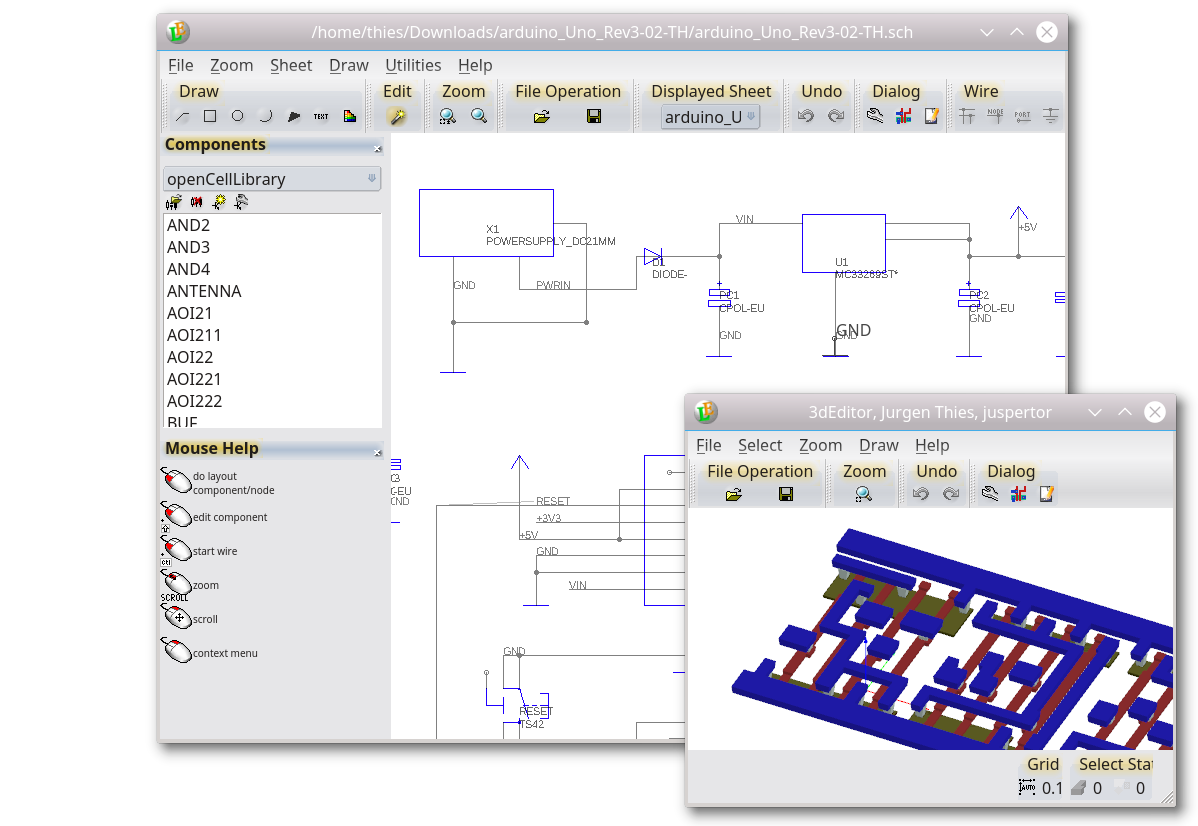

SchematicEditor
and other tools are integrated in the user interface
A schematic editor, 3d viewer and interfaces to autorouter, extraction tools, circuit simulators, photomask service are integrated in the user-interface.
User Interface
A cleverly worked out user interface provides outstanding usability on the one hand and high productivity on the other.
This virtual challenge is solved by the extensive use of shortcuts and mouse button/key combinations together with clear display of these combinations. The most important handling functions like zooming and scrolling are integrated into each feature and need not be called up separately.
free
free
creation of photomasks, evaluation, training, viewer and small projects of any kind
- all features of the full version
- no size limitation for editing and viewing
- export to some file format is limited to small designs
- bigger designs can be exported with our cloud service for a small fee
reduced
$399
perpetual
viewer for complex designs, basic editing, simple custom designs, format conversions
- manual editing features
- SchematicEditor
- no size limitation
- all file formats
- photomask services and online viewer
full
$1499
perpetual · popular
creating/editing of complex design (all areas), schematic driven layout, complex format conversions, design checks
- Macros/Scripting
- AI support
- SchematicEditor
- 3D Viewer
- special editing features
- Design Rule Checker
- background images
- shape utilities
- no size limitation
- all file formats
